Davidson Defense Lightshow Anodized Purple w/Magpul BTR Brace 5-inch 1:10 9MM AR-9 Freefloat M-Lok Handguard Pistol Full Build Kit

Davidson Defense Lightshow AR-9 Pistol Full Build Kit with Magpul BTR Brace - 5-inch Anodized Purple 9mm 1:10 Freefloat M-Lok Handguard

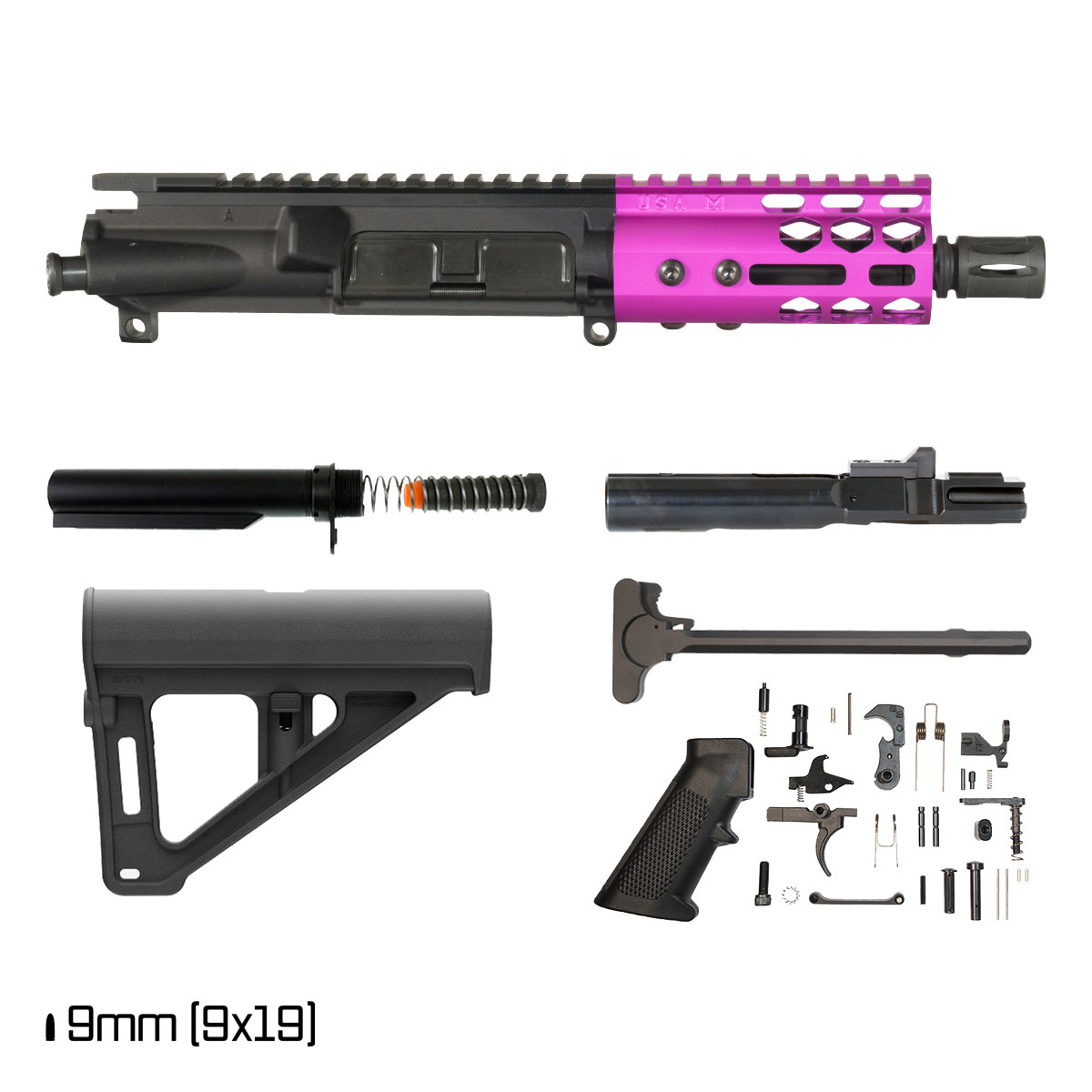

The Davidson Defense Lightshow with Magpul BTR Brace is an AR-9 pistol full build kit chambered in 9mm with a 5-inch slim profile barrel. The kit includes the upper assembly, 9mm bolt carrier group, charging handle, Magpul BTR polymer pistol brace, mil-spec heavy-duty 6-position buffer tube, 5.5 oz 9mm carbine buffer, carbine recoil spring, mil-spec receiver end plate, lower parts kit, and all associated buffer system hardware. The AR-9 platform operates via direct blowback. The lower receiver is not included.

Key Features

• 5-inch 4150 CrMoV steel slim profile barrel
• Phosphate barrel finish
• 1:10 twist rate
• 1-in-2x36 thread pitch
• 7075-T6 aluminum upper receiver with M4 feed ramps, anodized finish
• Freefloat M-Lok handguard in 6061-T6 aluminum, anodized purple finish
• 9mm nitride bolt carrier group in 8620 alloy steel
• Mil-spec M4 charging handle
• 9mm A2 birdcage flash hider, 1-in-2x36 thread pitch
• Magpul BTR polymer pistol brace in black, compatible with standard mil-spec buffer tubes
• Mil-spec heavy-duty 6-position buffer tube
• 5.5 oz 9mm carbine buffer and carbine recoil spring
• Mil-spec receiver end plate

Perfect For

• AR-9 pistol builders sourcing a complete kit around a 5-inch 9mm upper with an anodized purple handguard
• Builders completing a stripped AR-9 compatible lower receiver
• Shooters running a freefloat M-Lok handguard in purple on an AR-9 build
• Builders adding a Magpul BTR brace to an AR-9 pistol build

Barrel and Upper Receiver

The 5-inch slim profile barrel is 4150 CrMoV steel with a phosphate finish and a 1:10 twist rate. The muzzle is threaded at 1-in-2x36 and pairs with the included 9mm A2 birdcage flash hider. The upper receiver is 7075-T6 aluminum with M4 feed ramps and an anodized finish, serving as the core front end structure for the AR-9 build. M4 feed ramps support reliable cartridge feeding from the magazine into the chamber. The AR-9 platform operates via direct blowback.

Handguard

The freefloat M-Lok handguard is 6061-T6 aluminum with an anodized purple finish, keeping the forend lightweight and compact. The M-Lok slots provide attachment points for lights, grips, and other accessories. The handguard length is shorter than the 5-inch barrel, and the muzzle device extends beyond the handguard to provide the necessary clearance.

Bolt Carrier Group and Charging Handle

The included 9mm bolt carrier group is built from 8620 alloy steel with a nitride finish. This BCG is the correct unit for AR-9 direct blowback configurations. The mil-spec M4 charging handle completes the upper component set.

Magpul BTR Brace and Buffer System

The Magpul BTR polymer pistol brace in black is compatible with standard mil-spec buffer tubes and pairs with the included mil-spec heavy-duty 6-position buffer tube. The 5.5 oz 9mm carbine buffer, carbine recoil spring, mil-spec receiver end plate, lower parts kit, and all associated buffer system hardware cover the core lower completion components outside the serialized lower receiver.

Follow safe handling and manufacturer instructions. Ensure compliance with all applicable federal, state, and local laws. Lower receiver not included.
