Davidson Defense Creosote 20-inch Rifle-Gas 1:7 22 ARC AR-15 M-Lok Handguard Rifle Upper Build Kit

Creosote 20-Inch Rifle-Gas 1:7 .22 ARC AR-15 M-LOK Handguard Rifle Upper Build Kit

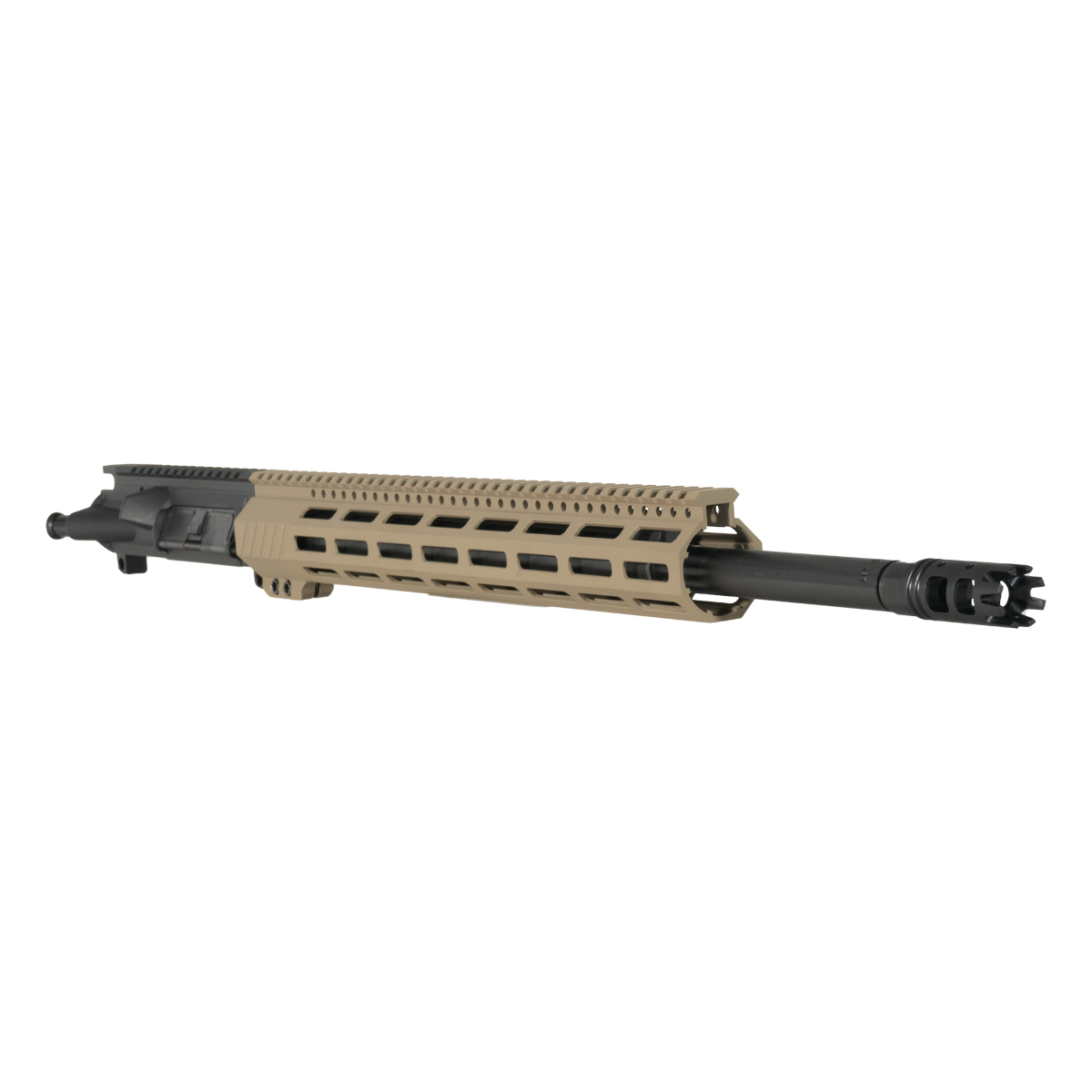

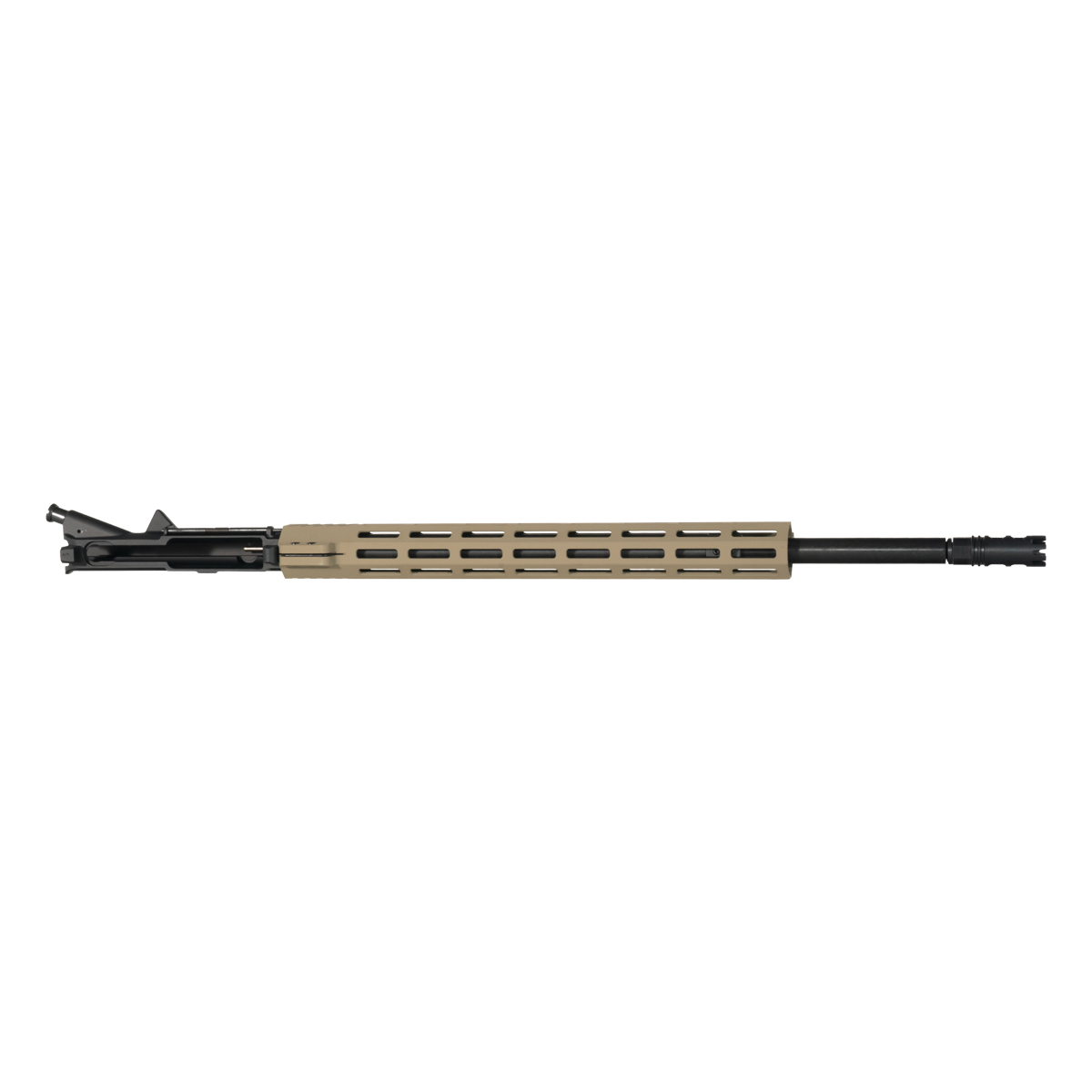

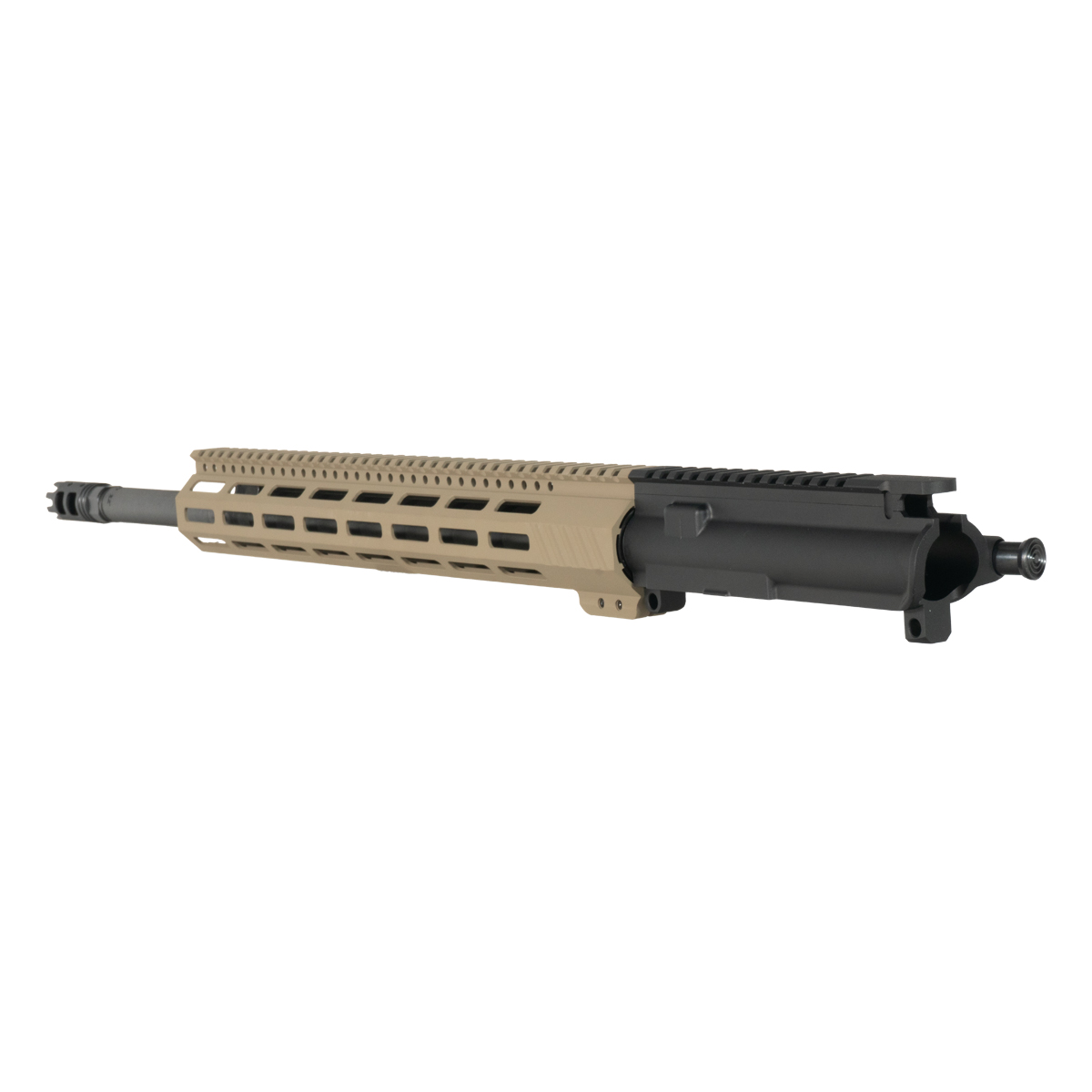

The Creosote Upper Build Kit is built around a 20-inch .22 ARC Bear Creek Arsenal HBAR barrel with a rifle-length gas system and a 15-inch free-float M-LOK handguard in FDE Cerakote. BCG and charging handle are not included.

Key Features

• 20-inch Bear Creek Arsenal HBAR barrel, 1:7 twist, Black Nitride finish
• Rifle-length gas system
• 7075-T6 aluminum upper receiver with M4 feed ramps, black anodized finish
• 15-inch K-style free-float M-LOK handguard in FDE Cerakote
• USA-made Crown muzzle brake on 1/2x28 threads with 1/2-inch black crush washer
• BCG and charging handle are not included.

Barrel and Gas System

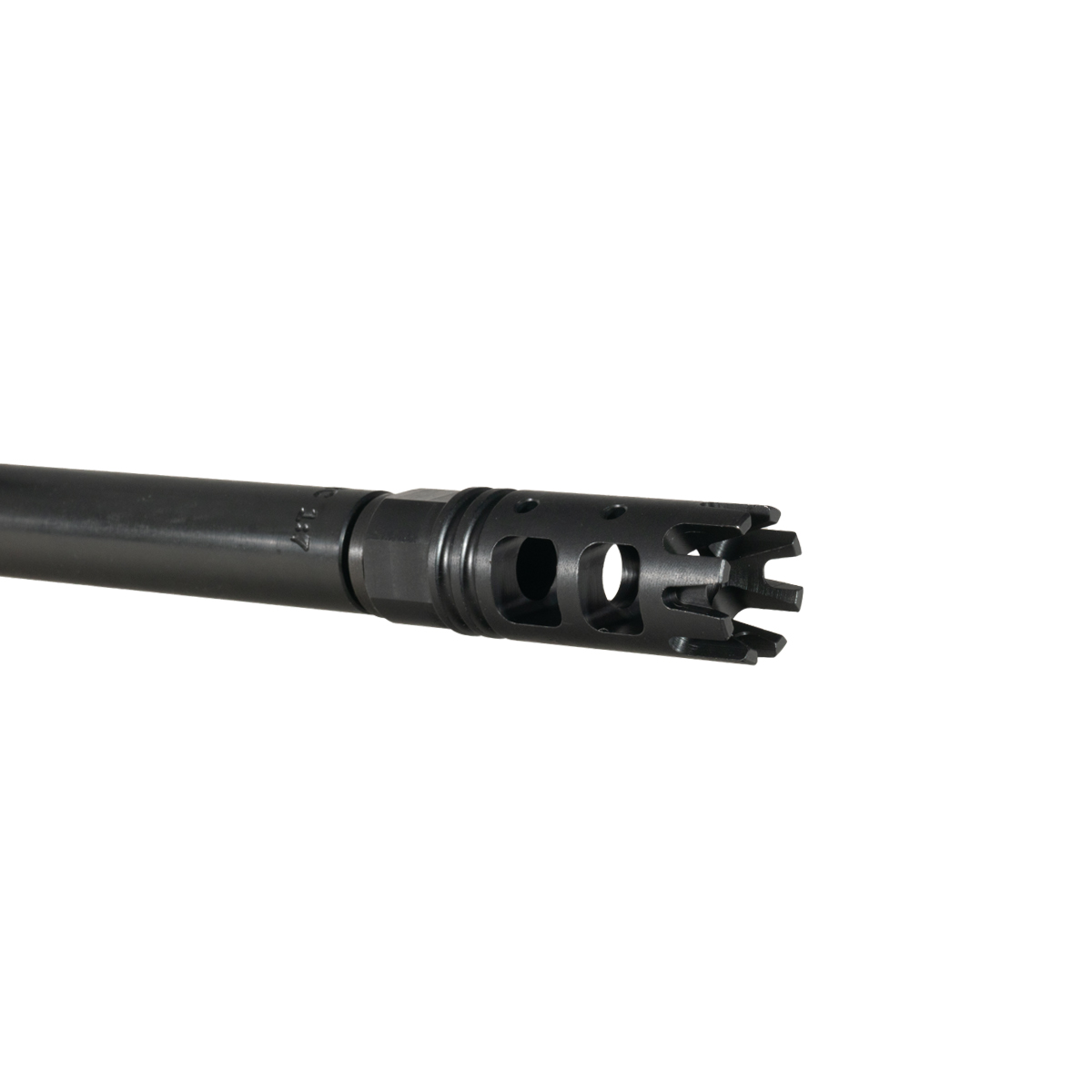

The 20-inch Bear Creek Arsenal barrel is machined in an HBAR heavy profile, a design that carries extra mass down the length of the barrel to help manage heat and hold accuracy across longer strings of fire. It's finished in Black Nitride for wear and corrosion resistance, and its 1:7 twist rate is on the faster end for .22 ARC, giving it the stabilization needed for a wide range of bullet weights rather than just the lighter, faster-twist-oriented projectiles. The rifle-length gas system runs through a stainless steel gas tube and a micro low-profile steel gas block with a .750-inch diameter, matched to the barrel's .750-inch gas journal. At the muzzle, 1/2x28 threads carry the included Crown muzzle brake, made in the USA and finished in Nitride, secured in place with the supplied 1/2-inch black crush washer.

Upper Receiver and Handguard

The upper receiver is machined from 7075-T6 aluminum, chosen for its strength-to-weight balance on AR-pattern uppers, and finished in black anodizing for durability. M4 feed ramps are cut into the receiver, and it arrives with the forward assist assembly and the ejection port door, rod, and spring already in place. Over the barrel and gas system sits a 15-inch K-style handguard built in an ultra-lightweight, minimalist free-float design with M-LOK compatibility, finished in FDE Cerakote to contrast against the black upper receiver. Because it's built without anti-rotation tabs, the handguard keeps a cleaner, lower-profile look along the barrel compared to tabbed designs.

Follow all manufacturer instructions and safe handling practices.

Ensure compliance with all applicable federal, state, and local laws.
