Davidson Defense Aegis w/SBA3 Brace 4.5-inch 1:10 9MM AR-9 M-Lok Handguard Pistol Full Build Kit

Aegis w/SBA3 Brace 4.5-inch 9mm AR-9 Full Build Kit

The Aegis w/SBA3 Brace is a 4.5-inch 9mm AR-9 Full Build Kit built around a medium-profile barrel and a 7075-T6 aluminum upper receiver. It pairs a 4-inch ultra-lightweight minimalist handguard with a Design 11 Flash Can, Revision 2 Pattern 2 muzzle device, giving this build a compact, front-light profile. It runs on a direct blowback operating system. A 9mm nitride bolt carrier group, Mil-Spec charging handle, complete Lower Parts Kit, carbine buffer-system components, and an SB Tactical SBA3 adjustable pistol stabilizing brace round out the rest of the build.

Key Features

• 4.5-inch 9mm barrel, 1:10 twist, medium profile
• Direct blowback operating system
• 7075-T6 aluminum upper receiver with M4 feed ramps
• 4-inch ultra-lightweight minimalist K-style free-float handguard
• Design 11 Flash Can, Revision 2 Pattern 2, steel with black oxide finish
• 9mm nitride bolt carrier group with external extractor, Glock and Colt-pattern magazine compatibility
• SB Tactical SBA3 adjustable pistol stabilizing brace included
• Complete Mil-Spec Lower Parts Kit and carbine buffer-system components included

Barrel and Muzzle Device

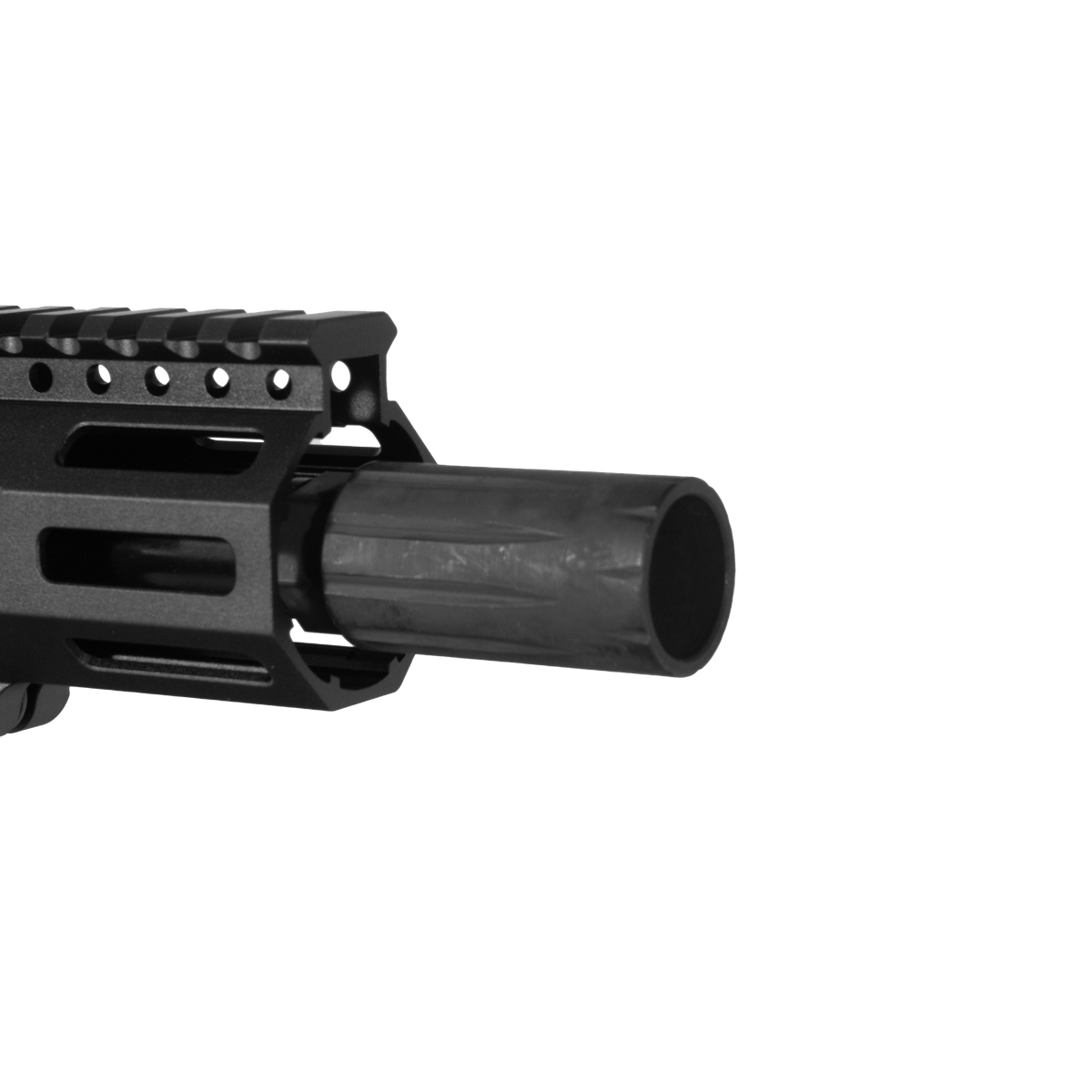

The barrel runs 4.5 inches long, chambered in 9mm and built from 4150 chrome moly vanadium steel with a nitride finish. It's cut to a medium profile and carries a 1:10 twist rate with a 1/2x36 muzzle thread. At the muzzle sits a Design 11 Flash Can, Revision 2 Pattern 2, machined from steel with a black oxide finish and threaded to match the barrel's 1/2x36 pattern, secured with the included 1/2-inch black crush washer.

Upper Receiver and Handguard

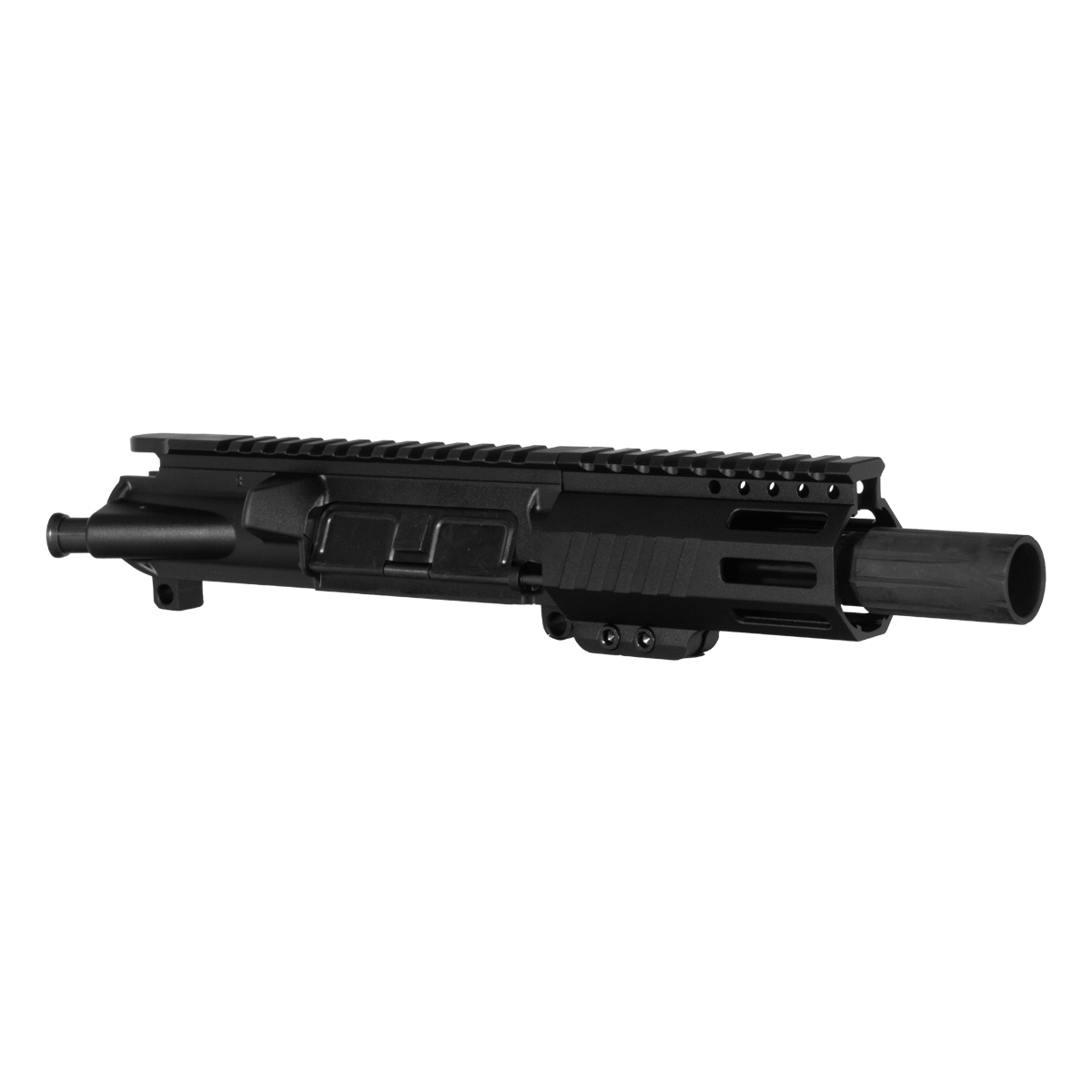

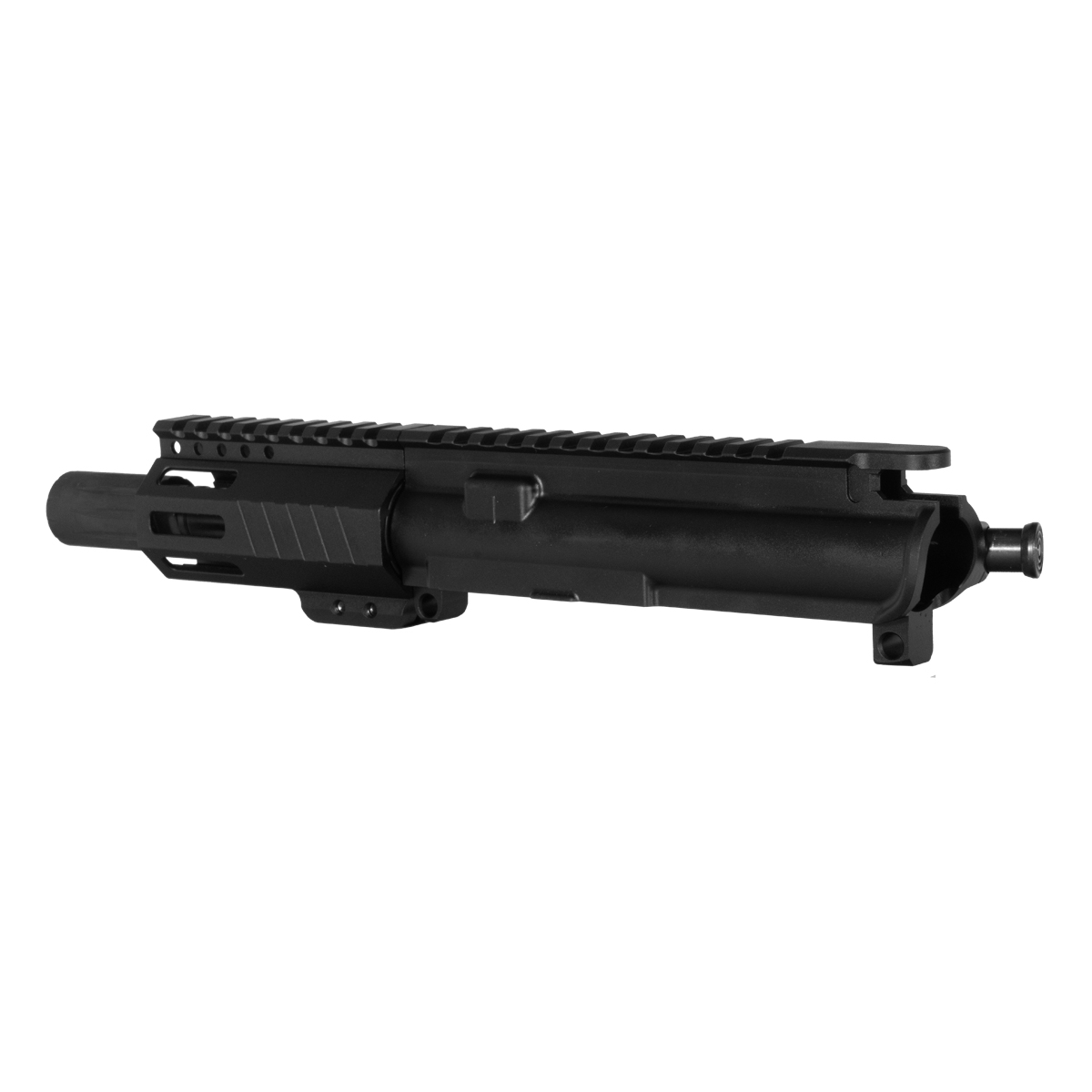

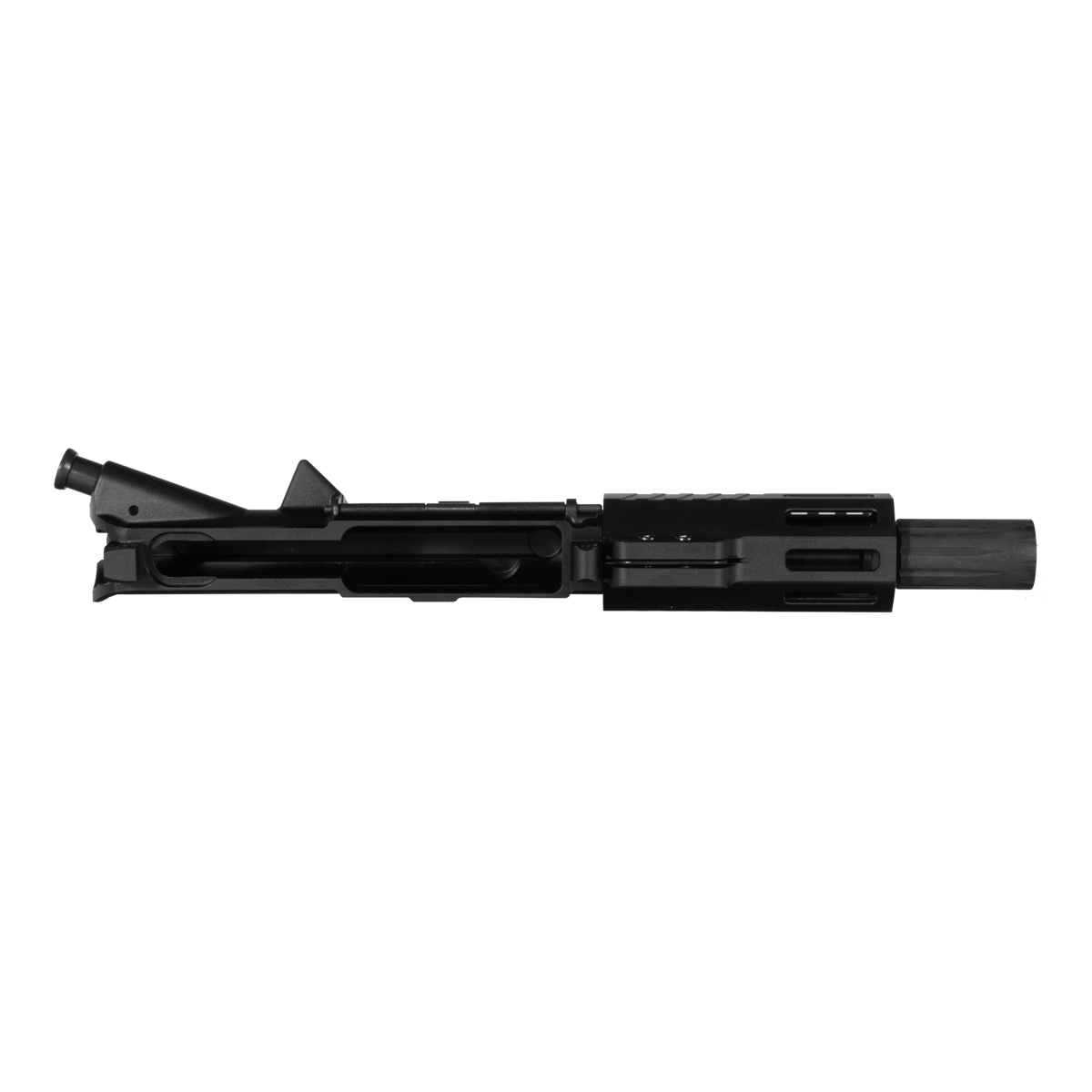

The upper receiver is machined from 7075-T6 aluminum with an anodized finish, cut with M4 feed ramps for smooth feeding and fitted with a standard AR-15 forward assist assembly. The ejection port carries a standard .223/5.56 door with its rod and spring installed. Over the barrel sits a 4-inch handguard in a K-style, ultra-lightweight minimalist profile, keeping this compact build slim and light up front. It's M-LOK compatible along its length, though it skips anti-rotation tabs, relying on its mounting hardware alone to stay indexed.

Bolt Carrier Group and Charging Handle

The bolt carrier group is a 9mm nitride unit machined from 8620 alloy steel, fitted with an external extractor for reliable case ejection. It's built for Glock and Colt-pattern magazine compatibility, giving the buyer flexibility depending on the lower this build eventually pairs with. A Mil-Spec AR-15 M4 charging handle rounds out the upper's operating components.

Lower Parts Kit and Buffer System

A complete Mil-Spec AR-15 Lower Parts Kit is included, covering the fire-control and lower-control internals needed once a lower receiver is on hand. Behind it sits a Mil-Spec heavy-duty six-position adjustable buffer tube, holding an AR-15 9mm carbine buffer and a standard USA-made recoil spring. A standard castle nut and Mil-Spec AR-15/M16 receiver end plate secure the buffer tube assembly to the lower.

Stabilizing Brace

Capping off the rear of the build is an SB Tactical SBA3 adjustable pistol stabilizing brace finished in black. It's built for Mil-Spec carbine buffer tubes, matching the six-position buffer tube included with this kit.

Follow all manufacturer instructions and safe handling practices.

Ensure compliance with all applicable federal, state, and local laws.
